# ETT System Selection

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FBh42VhFV9kVRZ5ITaluD%2FETT%400.5x.png?alt=media&amp;token=8fc87c89-441a-4e13-9225-8fb51539cfe5" alt=""><figcaption></figcaption></figure>

We offer a range of ETT systems designed to address a variety of structures. Each system is tailored to meet specific performance demands while utilizing the same proven subsurface technology.

Accompanying these systems is a wide selection of accessory products that allow for complete system integration, including surface preparation, crack treatment, detailing, and repair.

## Core Systems – Above-Grade Solutions

<div><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fl31XIkhUxDjjxp7tc27G%2FTechCrete-%202500%205gals.png?alt=media&amp;token=fe78dcba-3335-4e59-a732-f4b2eb3064df" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FgSRXbYwPAVHrnG0buLVi%2FBD-%20Waterproofing%20Agent%205%20gals.png?alt=media&amp;token=3284a826-c02f-4344-8919-1538cc7de1c3" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FOwX9qiYKEoRfM7uyLABe%2FCretePro-%20Ultra%20PLus%205gals.png?alt=media&amp;token=304f6f65-7e24-4d7d-8d27-0df326c163e3" alt="" width="188"><figcaption></figcaption></figure></div>

### TechCrete Watertite System

Our TechCrete Watertite System consists of our flagship waterproofing sub-surface membrane, TechCrete 2500, along with the accompanying TechCrete Admix. This is our most widely used system, designed as a subsurface waterproofing solution for a broad range of concrete structures.

#### TechCrete 2500

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fl31XIkhUxDjjxp7tc27G%2FTechCrete-%202500%205gals.png?alt=media&amp;token=fe78dcba-3335-4e59-a732-f4b2eb3064df" alt="" width="188"><figcaption></figcaption></figure></div>

TechCrete 2500 is a surface-applied waterproofing material utilizing Enzymatic TechCrete Technology (ETT) for use on new or existing concrete. It is applied directly to the surface and absorbed into the concrete to provide subsurface protection without forming a coating. It serves as the primary field-applied component of the TechCrete System.

<div align="left"><figure><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/rkPqPDgiElbfKqhTdrbB/media/image8.jpg" alt="" width="375"><figcaption></figcaption></figure></div>

**ETT Product Specifics**

•         Seals existing cracks up to 2.0 mm

•         Seals future cracks up to 1.5 mm

•         No future reapplications

**Physical Properties**

•         Colorless, clear to slightly opaque, odorless, soapy feel

•         Non-toxic & Biodegradable

•         Percent nonvolatile solids 26.55%

•         Specific gravity at 77 °F (25 °C): 1.21

•         Flash point - no true flash - boils at 214 °F (101 °C)

•         Auto-ignition temperature - N/A Non-explosive

•         pH 11.51

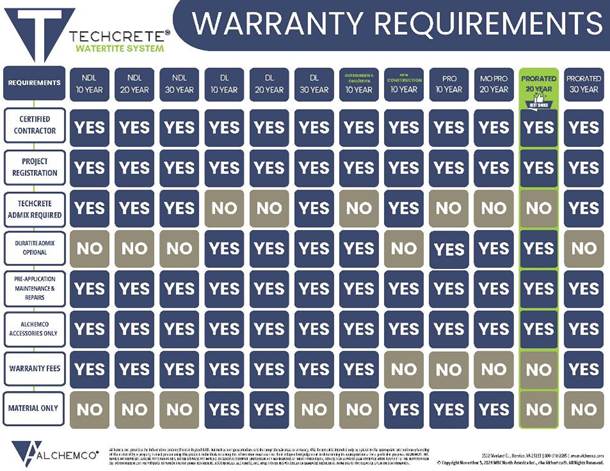

**Warranties**

•         20-year EMERALD Warranty (New or Existing Construction):\
Full System Labor & Material Warranty

Spray 2500 Waterproofing Agent after concrete cures (28 days later) … along with all other necessary TechCrete products Material

•         30-year PLATINUM Warranty (New Construction Only & Must Include TC Admix):

Must include the use of both the Concrete Admix (at time of pour) … AND 2500 Waterproofing Agent after concrete cures (28 days later) … along with all other necessary TechCrete products

&#x20;

•         Dollar Limit, and No Dollar Limit warranties available as well

<img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/0RQlP5f6Z5NBnhxIZXUv/media/image9.jpg" alt="" data-size="original">

**Application Rates & Packaging**

•         See *Application Rates & Packaging*

**Shelf Life, Storage, and Transportation**

Alchemco TechCrete 2500 has no known shelf life. Alchemco TechCrete 2500 shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

**Limitations**

&#x20;Alchemco TechCrete 2500 is not suitable for sealing cracks in concrete more than 2.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

•         [See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-application-procedure.md)

{% embed url="<https://www.youtube.com/watch?v=ekkg-fqKZEs>" %}

Please refer to the [TechCrete 2500 TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

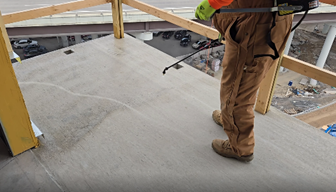

**Application Photos**

Balconies                                                                     Water Tanks

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/sCCFYtT1zfgVuFtU3BXl/media/image10.png) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/fqSr0lwTwRX5o480A3Bu/media/image11.png)

Rooftops                                                                      Vertical Applications

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/RLpmKwP89eEX2grg1HGS/media/image12.jpg) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/WWlE8g2eGzHH9yvZi4U8/media/image13.jpg)

Parking Garages                                                          Water Treatment Plants

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/r98katmwl3BKwRoBS3Xj/media/image14.jpg) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/AE42GegnBxHzCZC6v70X/media/image15.jpg)

&#x20;

&#x20;

#### TechCrete Admix

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FeT75c6nSGaJJQ0BX6pDg%2FTechCrete-%20Admix%205gals.png?alt=media&amp;token=d03f1d50-a9d3-4c9c-a221-23ff12e7a945" alt="" width="188"><figcaption></figcaption></figure></div>

TechCrete Admix is a permanent waterproofing admixture for concrete and mortar. It forms insoluble crystals in the water-bearing capillaries of the mix, blocking water, and ensuring long-term protection. TechCrete Admix can be used in mortars and surface-applied slurry systems. The moisture and lime in the mix react with the admixture's chemicals to create a barrier that penetrates deep into the concrete's capillary structure. Full waterproofing typically occurs within 7 to 10 days, depending on the mix design and curing process. The admixture is effective against both negative and positive water pressure and remains active with each water exposure.

**Key Benefits**

•         Waterproofs for the life of the structure.

•         Maintenance-free.

•         No future reapplications.

•         Seals present and future cracks up to 1/64” (0.4 mm).

•         No VOCs.

•         Provides excellent waterproofing properties by becoming an integral part of the structure.

•         Protects concrete and reinforcement against corrosive waterborne substances.

•         Crystalline action is reactivated by contact with water providing long-term additional protection.

•         Effective against both positive and negative water pressure. (reduces vapor pressure)

•         Non-toxic or tainting.

•         Permits early backfilling without requirement for Maintenance free.

•         Bridges hairline cracks up to 1/64” (0.4 mm).

&#x20;

**Application Rate & Packaging**

•         Coverage Rate:                       &#x20;

> One 22oz bag / cubic yard of concrete
>
> One 0.8kg bag / cubic meter of concrete

•         Packaging:                       &#x20;

> 20 soluble bags / 5-gallon pail
>
> 400 lbs loose powder

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

TechCrete Admix may be added to the concrete or mortar at either the batching plant, or it can be added to the mixer at the job site. It is preferable that TechCrete Admix be added to the dry mix to ensure even distribution prior to the addition of water. If TechCrete Admix is added after the addition of water, mixing must continue for an additional 10 minutes prior to placement of the mix.

**Concrete Curing**

For proper curing of concrete when TechCrete Admix has been used, effort must be made to prevent concrete from drying too fast. This means that the concrete should be kept wet for at least 7 days after the initial pour of the concrete. One method to accomplish this is misting with water and then covering with a polyethylene sheet or curing blankets. Additionally, to ensure proper curing, it is recommended that the surface of the concrete be protected from any adverse environment for the 7-day curing period. Do not use any chemical curing agents in combination with TechCrete Admix unless approved or supplied by Alchemco.

Please refer to the [TechCrete Admix TDS for further details](https://alchemco.com/data-sheets).

### &#x20;

&#x20;

### CretePRO

<div><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FFqtn6x02MALuWvdYqy6h%2FCretePro-%20Ultra%205gals.png?alt=media&amp;token=8cb5884e-bcb4-4af9-9ed1-1607d01aa748" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FvlTPmAqkLtY0xhJhXZEK%2FCretePro-%20Ultra%20PLus%205gals.png?alt=media&amp;token=47da08a2-504c-4107-8f7b-a3e1017e4c20" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FU6541Ttz6YcwFG8E2EpT%2FCretePro-%20FasTrac%205gals.png?alt=media&amp;token=ca875129-4595-4b08-809e-f343ed4b2b64" alt="" width="188"><figcaption></figcaption></figure></div>

The CretePRO line consists of CretePRO ULTRA PLUS, ULTRA, and Fastrac. Utilizing Enzymatic TechCrete Technology (ETT), these products penetrate into the concrete to provide long-term protection against water and contaminant ingress. These products are used across a range of applications where both durability and waterproofing performance are required.

#### CretePRO ULTRA PLUS

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FvlTPmAqkLtY0xhJhXZEK%2FCretePro-%20Ultra%20PLus%205gals.png?alt=media&amp;token=47da08a2-504c-4107-8f7b-a3e1017e4c20" alt="" width="188"><figcaption></figcaption></figure></div>

Alchemco CretePRO ULTRA PLUS is our simplified waterproofing system designed for everyday use, featuring our original enzyme modified subsurface waterproofing sub-surface membrane. Once spray-applied, Alchemco CretePRO ULTRA PLUS immediately penetrates all capillaries, pores, and cracks of the structure creating a subsurface barrier inside the concrete matrix. Because the formula resides within the concrete and is self-healing, your structure will remain protected through stressful environments, hazardous weather, and even when future cracks appear.

**ETT Product Specifics**

•         Seals existing cracks up to 2.0 mm

•         Seals future cracks up to 1.0 mm

**Physical Properties**

•         Colorless, clear to slightly opaque, odorless, soapy feel

•         Non-toxic & Biodegradable

•         Percent nonvolatile solids 26.55%

•         Specific gravity at 77°F (25°C): 1.2

•         Flash point - no true flash - boils at 214°F (101°C)

•         Auto-ignition temperature - N/A Non-explosive

•         Viscosity - 14.3 centipoise or 0.1172 Stokes

•         pH 11.51

**Warranty**

•         15 Year Limited Liability Material Warranty

**Application Rates & Packaging**

#### Application Rates & Packaging

**Coverage Rate**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

&#x20;**Shelf Life, Storage, and Transportation**

Alchemco CretePRO ULTRA PLUS has no known shelf life. Alchemco CretePRO ULTRA PLUS shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

&#x20;Alchemco CretePRO ULTRA PLUS is not suitable for sealing cracks in concrete more than 2.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

[•         See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-system-selection.md)

Please refer to the [CretePRO ULTRA PLUS TDS for further details](https://alchemco.com/data-sheets).

#### &#x20;

&#x20;

#### CretePRO ULTRA

Alchemco CretePRO ULTRA is an efficient waterproofing system ideal for a variety of horizontal and vertical applications. Featuring our original enzyme-modified subsurface waterproofing membrane, it penetrates capillaries, pores, and cracks upon spray application, forming a strong barrier within the concrete matrix. Its self-healing properties provide enduring protection, ensuring your vertical structures remain safeguarded against water intrusion and damage, even as new cracks develop over time.

**ETT Product Specifics**

•         Seals existing cracks up to 2.0 mm

•         Seals future cracks up to 0.5 mm

**Physical Properties**

•         Colorless, clear to slightly opaque, odorless, soapy feel

•         Non-toxic & Biodegradable

•         Percent nonvolatile solids 26.55%

•         Specific gravity at 77°F (25°C): 1.2

•         Flash point - no true flash - boils at 214°F (101°C)

•         Auto-ignition temperature - N/A Non-explosive

•         Viscosity - 14.3 centipoise or 0.1172 Stokes

•         pH 11.51

**Warranty**

•         10 Year Limited Liability Material Warranty

**Application Rates & Packaging**

**Coverage Rate:**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

**Shelf Life, Storage, and Transportation**

&#x20;Alchemco CretePRO ULTRA has no known shelf life. Alchemco CretePRO ULTRA shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

Alchemco CretePRO ULTRA is not suitable for sealing cracks in concrete more than 2.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

•       [  See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-system-selection.md)

Please refer to the [CretePRO ULTRA TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### CretePRO FasTrac

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FU6541Ttz6YcwFG8E2EpT%2FCretePro-%20FasTrac%205gals.png?alt=media&amp;token=ca875129-4595-4b08-809e-f343ed4b2b64" alt="" width="188"><figcaption></figcaption></figure></div>

Alchemco CretePRO FasTrac is our streamlined waterproofing solution, ideal for everyday waterproofing protection. Utilizing our original enzyme-modified subsurface waterproofing membrane, FasTrac quickly penetrates the concrete surface and embeds itself within the matrix. Our self-healing formula ensures ongoing protection by creating a barrier inside the concrete, reactivating anytime it encounters water.

**ETT Product Specifics**

•         Seals existing cracks up to 1.0 mm

•         Seals future cracks up to 0.5 mm

**Physical Properties**

•         Colorless, clear to slightly opaque, odorless, soapy feel

•         Non-toxic & Biodegradable

•         Percent nonvolatile solids 26.55%

•         Specific gravity at 77°F (25°C): 1.2

•         Flash point - no true flash - boils at 214°F (101°C)

•         Auto-ignition temperature - N/A Non-explosive

•         Viscosity - 14.3 centipoise or 0.1172 Stokes

•         pH 11.51

**Warranty**

•         5 Year Limited Liability Material Warranty

**Application Rates & Packaging**

**Coverage Rate:**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

**Shelf Life, Storage, and Transportation**

Alchemco CretePRO FasTrac has no known shelf life. Alchemco CretePRO FasTrac shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

&#x20;Alchemco CretePRO FasTrac is not suitable for sealing cracks in concrete more than 1.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

•        [ See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-application-procedure.md)

Please refer to the [CretePRO FasTrac TDS for further details](https://alchemco.com/data-sheets).

### &#x20;

&#x20;

### BridgeDECK

<div><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FVFvjEBWmJrErqahaBAQ9%2FBD-%20CorrosionBlok%205%20gals.png?alt=media&amp;token=8d07290f-c4c1-4d13-ab65-340a30d15a95" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FHxm5oQgeoZW4hYBHaZvA%2FBD-%20Protectant%205%20gals.png?alt=media&amp;token=e7bfccad-31b7-47fe-82bb-c1028147d7c6" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fa1PIpiAuhwtUXr2Dbyw7%2FBD-%20Protectant%20Plus%205%20gals.png?alt=media&amp;token=6b5d161c-89af-476a-aef3-ad2b36eb0374" alt="" width="188"><figcaption></figcaption></figure> <figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fe81Xc2D8OBCXrwQ17I3P%2FBD-%20Waterproofing%20Agent%205%20gals.png?alt=media&amp;token=73682988-95b5-47ba-b472-b5cb7b620065" alt="" width="188"><figcaption></figcaption></figure></div>

The BridgeDECK line consists of a range of products designed to protect and extend the service life of concrete structures exposed to vehicular traffic, chlorides, and harsh environmental conditions.

BridgeDECK is specifically engineered for DOT applications where durability and long-term performance are crucial. De-icing salts play a huge factor in the premature deterioration of DOT infrastructure - BridgeDECK solves that problem.

#### BridgeDECK Waterproofing Agent

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fe81Xc2D8OBCXrwQ17I3P%2FBD-%20Waterproofing%20Agent%205%20gals.png?alt=media&amp;token=73682988-95b5-47ba-b472-b5cb7b620065" alt="" width="188"><figcaption></figcaption></figure></div>

BridgeDECK Waterproofing Agent is the pinnacle comprehensive system formulated with our Enzymatic TechCrete Technology (ETT) specifically for the Department of Transportation. Engineered to enhance sustainability and preserve highway structures, Alchemco BridgeDECK Waterproofing Agent protects infrastructure for its intended design life. Working its way from the inside out, this subsurface membrane waterproofing system protects cracks, pores, and capillaries promoting durability.

**ETT Product Specifics**

•         Seals existing cracks up to 2.0 mm

•         Seals future cracks up to 1.0 mm

•         25-year reapplication interval

•         25 Year Limited Liability Material Warranty

**Physical Properties**

•         Appearance: Colorless to slightly opaque, odorless

•         Non-toxic, biodegradable

•         Non-volatile solids: 26.55%

•         Boiling point: 214°F (101°C)

•         Viscosity: 14.3 centipoise

•         pH: 11.51

**Application Rates & Packaging**

**Coverage Rate:**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

**Shelf Life, Storage, and Transportation**

&#x20;Alchemco BridgeDECK Waterproofing Agent has no known shelf life. Alchemco BridgeDECK Waterproofing Agent shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

&#x20;Alchemco BridgeDECK Waterproofing Agent is not suitable for sealing cracks in concrete more than 2.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

[•         See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-application-procedure.md)

Please refer to the [BridgeDECK Waterproofing Agent TDS for further details](https://alchemco.com/data-sheets).

#### &#x20;

&#x20;

#### BridgeDECK Protectant Plus

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fa1PIpiAuhwtUXr2Dbyw7%2FBD-%20Protectant%20Plus%205%20gals.png?alt=media&amp;token=6b5d161c-89af-476a-aef3-ad2b36eb0374" alt="" width="188"><figcaption></figcaption></figure></div>

Alchemco BridgeDECK PROtectant PLUS is an enzyme modified subsurface membrane waterproofing system. When applied, PROtectant PLUS forms a barrier, protecting your infrastructure from water and contaminants like chloride ions. Formulated using our Enzymatic TechCrete Technology (ETT), PROtectant PLUS penetrates the concrete and reacts to create a flexible, subsurface membrane that fills cracks and pores.

**ETT Product Specifics**

•         Seals existing cracks up to 1.5 mm

•         Seals future cracks up to 0.3 mm

•         20-Year reapplication interval

**Physical Properties**

•         Appearance: Colorless to slightly opaque, odorless

•         Non-toxic, biodegradable

•         Non-volatile solids: 26.55%

•         Boiling point: 214°F (101°C)

•         Viscosity: 14.3 centipoise

•         pH: 11.51

**Warranty**

•         20 Year Limited Liability Material Warranty

**Application Rates & Packaging**    &#x20;

**Coverage Rate:**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

**Shelf Life, Storage, and Transportation**

&#x20;Alchemco BridgeDECK PROtectant PLUS has no known shelf life. Alchemco BridgeDECK PROtectant PLUS shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

&#x20;Alchemco BridgeDECK PROtectant PLUS is not suitable for sealing cracks in concrete more than 1.5 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

•         [See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-application-procedure.md)

Please refer to the [BridgeDECK PROtectant PLUS TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### BridgeDECK PROtectant

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FHxm5oQgeoZW4hYBHaZvA%2FBD-%20Protectant%205%20gals.png?alt=media&amp;token=e7bfccad-31b7-47fe-82bb-c1028147d7c6" alt="" width="188"><figcaption></figcaption></figure></div>

BridgeDECK PROtectant is formulated with our Enzymatic TechCrete Technology (ETT) to maintain durability during freeze/thaw cycles, environmental hazards including but not limited to chloride ions and saltwater penetration. This subsurface waterproofing membrane seals existing cracks, creating sustainability and preservation for both steel reinforcements at the core of your structure to the trafficable surface.

**ETT Product Specifics**

•         Seals existing cracks up to 1.0 mm

•         Seals future cracks up to 0.3 mm

•         15-year reapplication period

**Physical Properties**

•         Appearance: Colorless to slightly opaque, odorless

•         Non-toxic, biodegradable

•         Non-volatile solids: 26.55%

•         Boiling point: 214°F (101°C)

•         Viscosity: 14.3 centipoise

•         pH: 11.51

**Warranty**

•         15 Year Limited Liability Material Warranty

**Application Rates & Packaging**

**Coverage Rate:**

<table><thead><tr><th width="146.28515625">Application</th><th>Coverage</th></tr></thead><tbody><tr><td>Surface</td><td><p>900–1,000 square feet / 5-gallon pail</p><p>84–93 square meters / 19-liter pail</p><p>9,900–11,000 square feet / 55-gallon drum</p><p>920–1,022 square meters / 208-liter drum</p></td></tr><tr><td>Cracks</td><td>150 linear feet / 5-gallon pail</td></tr></tbody></table>

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)
* 275-gallon tote (1041 liters)

**Shelf Life, Storage, and Transportation**

&#x20;Alchemco BridgeDECK PROtectant has no known shelf life. Alchemco BridgeDECK PROtectant shall be stored away from direct sunlight at all times. If left in direct sunlight during high temperatures, product effectiveness may be affected. Freezing must be avoided. If freezing occurs, the product may be left at room temperature until thawed. If overheating or freezing is suspected, please send a sample to Alchemco HQ for review. Protect material from extreme temperatures during transportation and storage. Do not allow product to remain exposed to excessive heat or cold temperatures for prolonged periods.

&#x20;

**Limitations**

&#x20;Alchemco BridgeDECK PROtectant is not suitable for sealing cracks in concrete more than 1.0 mm in width, expansion joints, working/volatile cracks, structural cracks and cold/construction/butt/pour joints. These instances must be treated with accessory products. *(see Supporting Systems – Accessory Items)*

**How to Apply**

[•         See *ETT Application Procedure* in **FULL**](/alchemco-documentation/ett-application-procedure.md)

Please refer to the [BridgeDECK PROtectant TDS for further details](https://alchemco.com/data-sheets).

&#x20;

### ETT Comparison Matrix

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FSFhz6EJN3inzB6CYo5Su%2FScreenshot%202026-06-23%20at%2019.28.01.jpg?alt=media&amp;token=054176ed-1592-46f4-8967-291b9e5628ea" alt=""><figcaption></figcaption></figure>

## Core Systems – Below-Grade Solutions

### Nexus

(Coming Soon)

#### Nexus Waterproofing Agent

(Coming soon)

#### Nexus Admix

(Coming soon)

#### Nexus Drainboard

(Coming soon)

#### Nexus Injection

(Coming soon)

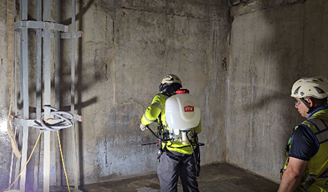

## ETT Application Photos

<div><figure><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/QcpYFJ1lsCwHgbpmO1tW/media/image17.jpg" alt="" width="375"><figcaption><p>Virginia Hospital Center - Arlington, VA</p></figcaption></figure> <figure><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/JBTacBNeQISP9wuveArX/media/image18.png" alt="" width="375"><figcaption><p>Beauford Delaney - Knoxville, TN</p></figcaption></figure></div>

<div><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/7JI86mXaHmXP4bw37Xm9/media/image19.jpg" alt="NJ DOT - Point Pleasant, NJ" width="375"> <img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/lfHG5vqDz5uUOoQpULoy/media/image20.png" alt="South Bell Street - Arlington, VA" width="375"></div>

<div><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/sacgcziib8VIzrD74Vmq/media/image21.jpg" alt="Purdue Campus Tunnel Repairs - West Lafayette, IN" width="375"> <img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/HK4WX9HTB4nskLSoZ9Ih/media/image22.jpg" alt="WWTP Final Clarifier, Solar, and Screen - Portage, IN" width="375"></div>

## Supporting Systems - Accessory Items

### ACRtec

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FUSlG7W8HKjgi2RpJfzQW%2FACRtec%20-%201.png?alt=media&amp;token=82c99d3c-86a8-4b52-91e4-9e78db9752f8" alt="" width="188"><figcaption></figcaption></figure></div>

The ACRtec line consists of products designed to complement ETT systems to achieve full project scopes. These products address surface preparation, crack treatment, flashings, and reinforcement protection allowing for full integration of overall waterproofing needs.

These products are critical in achieving a watertight solution and may be required for certain system warranties.

#### Concrete & Masonry Cleaner

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FCRm9QWaUJziG1xpr1Mbq%2FACRtec%20-%20C%26M%20Cleaner%205%20gals.png?alt=media&amp;token=38a0528f-85d3-4522-ba05-344f84a67bf1" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Concrete & Masonry Cleaner replaces harsh and dangerous cleaners used on concrete and masonry. What makes this product unique is its ability to outperform the harshest acidic and caustic solutions while remaining non-corrosive and non skin irritating. In fact, it is so safe, it carries a triple zero HMIS score and is non-regulated by the D.O.T.

ACRtec Concrete & Masonry Cleaner encapsulates and lifts petroleum-based oils, vegetable and animal fats, along with dirt, soils and grime without emulsifying. This combined with no detectable BOD or COD limits below 100 means that it will not create additional problems in your wastewater runoff. The result is a concentrated liquid that cleans, brightens, deodorizes and protects in a simple one step process, just apply and rinse.

ACRtec Concrete & Masonry Cleaner is NSF certified for a wide range of uses including A1, A2 A3, A4, A5, A8, C1, C2 and D1.

**Key Benefits**

•         Non-corrosive

•         Acid free

•         Cuts animal fats

•         Non-emulsifying

•         Non-D.O.T. regulated

•         Eliminates odors

•         Non-caustic

•         Lifts grease

•         Cuts vegetable fats

•         One-step process

•         Safe on Paint, Metal, Glass

•         NSF certified

**Physical Properties**

•         Appearance: Clear Amber Liquid

•         Specific Gravity: 1.12 ± 0.02

•         Odor: Mild soapy

•         Freezing Point: < -26 °F (-32 °C)

•         Boiling Point: > 234 °F (101 °C)

•         Solubility: 100% in water

**Performance Properties**

| Biodegradable       | Yes / 100%          |
| ------------------- | ------------------- |
| Form                | Liquid              |
| Odor                | Mild Detergent Odor |
| Cold Stability      | -26° F              |
| Detergency          | Strong              |
| Phosphates          | None                |
| Wetting Ability     | Excellent           |
| Flammability        | Non-Flammable       |
| Boiling Point       | 234° F              |
| Solubility in water | 100%                |
| VOCs                | None                |
| Volatile by volume  | N/A                 |
| Carcinogens         | None                |
| Shelf Life          | 1 Year              |
| Mutagenicity        | Non-mutagenic       |
| Toxic Limits        | Non-Toxic           |
| Biodegradation      | Biodegradable       |

#### Application Rate & Packaging

**Coverage rate**

* 2,500 square feet / 5-gallon pail
* 232 square meters / 19-liter pail

**Note:** Heavily soiled surfaces may require more product to properly clean the surface. It is recommended that a small test area be treated to ensure the proper coverage rate.

**Packaging**

* 5-gallon pails (19 liters)
* 55-gallon drums (208 liters)

**Shelf Life & Storage**

ACRtec Concrete & Masonry Cleaner has a shelf life of more than one year. Product is freeze/thaw stable. Keep the container closed when not in use. Safety glasses are suggested when handling this product. No special gloves or protective equipment is required. Due to the product’s low pH, aluminum piping and fittings should not be used. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      ACRtec Concrete & Masonry Cleaner is a ready to use product but can be diluted as needed. Using a low-pressure pump style sprayer, apply the product to the surface of the concrete.

2\.      For best results, the product should be applied when the ambient temperature is 40 °F (5 °C) and rising.

3\.      Allow the product to remain on the surface for at least 10 minutes, if possible. Using a scrub brush or similar device will enhance cleaning.

4\.      Once the product has been used, remove dirt, grime, and product from the surface using clean water. Rinsing with pressure washing may enhance the cleaning process

[Please refer to the ACRtec Concrete & Masonry Cleaner TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### Emulsifying Cleaner

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FWmcVsFbPYmH2AhHup4uc%2FACRtec%20-%20Emulsifying%205%20gals.png?alt=media&amp;token=1df86725-a200-4f69-aca7-d6a0d3781402" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Emulsifying Cleaner is designed to be used when oil and grease are present on the surface of the concrete. Oil, grease, and similar hydrocarbon products will stop the proper penetration of the waterproofing agents into the surface of the concrete. ACRtec Emulsifying Cleaner works by converting oil, grease, fats, and animal by-products into a soapy solution which floats up and out of a surface during the rinsing process. It effectively removes wax off tile or inlaid floors and cleans tools and equipment. This emulsifying process permeates into voids, cracks, or concrete surfaces, converting the oily matter into a soapy solution permitting easy removal.

**Application Rate & Packaging**

Coverage Rate:           &#x20;

* 300 square feet / 5-gallon pail
* 28 square meters / 19-liter pail

Packaging:

* 5-gallon pail / 19-liter pail

Note: Repeated applications may be necessary for heavy oil and grease, which will reduce the coverage rate.

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply:**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Apply the product using a pump-style sprayer. Apply a liberal coat of product to ensure complete coverage.

2\.      Using a scrubbing-type brush, scrub the surface of the concrete to loosen and suspend the dirt and oils. As a supplement to the scrubbing brush, a pressure washer may be used.

3\.      Once the entire surface has been scrubbed and dirt and oil are suspended and removed, begin rinsing the surface with clean water.

4\.      Visually inspect. If heavy deposits of dirt and oil are still remaining, repeat the application of ACRtec Emulsifying Cleaner.

**Clean Up**

Clean all equipment immediately after use. Do not allow water to remain in contact with equipment for long periods of time.

**Precautions**

ACRtec Emulsifying Cleaner is a powerful cleaner and if used without proper dilution may damage surfaces. Always test at your intended dilution, in an inconspicuous section of the surface.

[Please refer to the ACRtec Emulsifying Cleaner TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

&#x20;

#### Concrete & Masonry Etch

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FfVa2c7BqsOUJO55zLJab%2FACRtec%20-%20C%26M%20Etch%205%20gals.png?alt=media&amp;token=30c8b399-8357-407e-a206-656d9376298d" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Concrete & Masonry Etch is a non-corrosive, non-skin irritant, and biodegradable surface etch that is as effective as traditional acids. It can be utilized for a variety of use cases.

The formulation was made to replace 32% hydrochloric acid without the dangers associated with that hazardous cleaner. It contains no natural acid, is non-corrosive, and because it is 100% synthetic, no neutralizing step is needed. It is the easiest etching product you will ever use.

The extreme hydrogen load in this product gives it the punch it needs to dissolve calcium carbonate, but because the hydrogen in this product has a much stronger bond to the H ion than those in acids, it has a slower spending nature. This makes it ideal for use in detailed and architectural etching. Because it is non-fuming, it can be used indoors where using muriatic acid or hydrochloric acid would be problematic. temperature extremes.

**Key Benefits**

•         Non-Corrosive

•         Non-Fuming

•         100% Biodegradable

•         Etches Concrete

•         OSHA and EPA Compliant

•         100% Synthetic Acid

•         Non-D.O.T. Regulated

•         Removes Rust

•         Safe on Glass & Metal

•         Safe on Skin

**Physical Properties**

•         Appearance: Clear Amber Liquid

•         Specific Gravity: ± 1.12+-0.02

•         Odor: Mild soapy

•         Freezing Point: ≤ -26 °F (-32 °C)

•         Boiling Point: ≥ 214 °F (101 °C)

•         Solubility: 100% in water

**Performance Properties**

| Biodegradable       | Yes / 100%      |
| ------------------- | --------------- |
| Form                | Liquid          |
| Odor                | Mild Soapy Odor |
| Cold Stability      | -26° F          |
| Detergency          | Moderate        |
| Phosphates          | None            |
| Wetting Ability     | Excellent       |
| Flammability        | Non-Flammable   |
| Boiling Point       | 214° F          |
| Solubility In Water | 100%            |
| VOCs                | None            |
| Volatile By Volume  | N/A             |
| Carcinogens         | None            |
| Shelf Life          | 1 Year          |
| Mutagenicity        | Non-mutagenic   |
| Toxic Limits        | Non-toxic       |
| Biodegradation      | Biodegradable   |

&#x20;

**Application Rate & Packaging**

Coverage rate:            &#x20;

* 2,500 square feet / 5-gallon pail
* 232 square meters / 19-liter pail

Note: Coverage rate is based upon a single application. In some situations, more than one application may be necessary.

Packaging:                  &#x20;

* 5-gallon pail / 19-liter pail
* 55-gallon drums / 208 liters

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      ACRtec Concrete & Masonry Etch is a ready to use product. Using a low-pressure pump style sprayer, apply the product to the surface of the concrete.

2\.      For best results, the product should be applied when the ambient temperature is 40 °F (10 °C) and rising.

3\.      Allow the product to remain on the surface for 10-30 minutes if possible. The product will not over-react.

4\.      The product can be allowed to dry in place, and the powder residue is removed with a vacuum or broom. It can also be rinsed from the surface with clean water.

[Please refer to the ACRtec Concrete & Masonry Etch TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### Surface Accelerating Agent (SAA) - Concentrate

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fgu6K1ICRsT3TIKi5ecKn%2FACRtec-ACC-Concentrate-2%2C5-gals.png?alt=media&amp;token=f1056853-47c1-47af-8ccd-de1cbeea3398" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Surface Accelerating Agent is an acetic based solution designed to be used on existing concrete and in combination with Alchemco’s TechCrete 2500, CretePRO and BridgeDECK products. ACRtec Surface Accelerating Agent increases the effectiveness of these products to seal small cracks and voids in the concrete. This product should only be used in combination with these products on concrete surfaces. Do not use it for general applications.

**Key Benefits**

•         Increases the calcium content of the concrete.

•         Enhances the sealing of cracks on initial application and will help to seal future cracks.

•         Non-toxic.

**Physical Properties**

•         Slight acetic odor

•         Non-toxic & Biodegradable

•         Flash point - no true flash - boils at 214 °F (101 °C)

•         Auto-ignition temperature - N/A Non-explosive

•         Viscosity: 890

•         Hazardous chemicals: None

•         pH 6.3-9.6

#### Application Rates & Packaging

**Coverage rate — Concentrate (SAA Concentrate)**

* 1 quart covers 900–1,000 square feet
* 0.96 liters covers 84–93 square meters
* 2.5 gallons covers 9,900–11,000 square feet
* 10 liters covers 920–1,022 square meters

**Coverage rate — Mixed Solution (SAA + Water)**

* 900–1,000 square feet per 5 gallons of mixed solution
* 84–93 square meters per 19 liters of mixed solution

**Note:** The coverage rate is based upon an average application and may be higher or lower depending on concrete porosity.

**Packaging**

* **Concentrate:**
  * 1-quart container (0.96 liters)
  * 2.5-gallon pail (10-liter pail)

**Mixing Ratio**

•         Add 1 quart of Surface Accelerating Agent Concentrate to 4.75 gallons of water to make 5 gallons of final solution.

•         Add 2.5 gallons of Surface Accelerating Agent Concentrate to 52.5 gallons of water to make 55 gallons of final solution.

**Shelf Life & Storage**

Containers should be sealed, kept in a cool & dry location, and should avoid prolonged exposure to direct sunlight. These methods should be practiced when shipped, stored, and on-site. If properly maintained, this product has a shelf life of two (2) years. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

•         *see* [*Acceleration Guide*](/alchemco-documentation/acceleration-guide.md) *for concentrate dilution, application, and other important details*

[Please refer to the ACRtec Surface Accelerating Agent TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### Crack Accelerating Agent

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F0zNitspa8nJpDBCOXzEu%2FACR%20-%20CrackACC.png?alt=media&amp;token=f0102a80-7b4b-4450-a0ec-5f15196782f6" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Crack Accelerating Agent is a concentrated acetic based product designed to be used with TechCrete 2500 Waterproofing Systems. ACRtec Crack Accelerating Agent may also be used in combination with CretePRO and BridgeDECK products. This product increases the effectiveness of ETT to seal small cracks in the concrete.

**Key Benefits**

•         Increases the calcium content of the concrete.

•         Enhances the sealing of cracks on initial application and will help to seal future cracks.

•         Non-toxic.

**Physical Properties**

•         Slight acetic odor

•         Non-toxic & Biodegradable

•         Percent non-volatile solids: 15%

•         Flash point - no true flash - boils at 214°F (101°C)

•         Auto-ignition temperature - N/A

•         Non-explosive

•         Viscosity: 890 Hazardous chemicals: None

•         pH 6.3-9.6

**Application Rates & Packaging**

Coverage Rate:           &#x20;

* 700 – 800 linear feet / 5-gallon pail
* 213 – 244 linear meters / 19-liter pail

Note: The coverage rate is based upon an average application and may be higher or lower depending on concrete porosity.

Packaging:

* 5-gallon / 19-liter pail

**Shelf Life & Storage**

Containers should be sealed, kept in a cool & dry location, and should avoid prolonged exposure to direct sunlight. These methods should be practiced when shipped, stored, and on-site. If properly maintained, this product has a shelf life of two (2) years. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

•         *see* [*Acceleration Guide*](/alchemco-documentation/acceleration-guide.md) *in **FULL** for application, and other important details*

[Please refer to the ACRtec Crack Accelerating Agent TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

#### L43 Crack Filler

ACRtec L43 Crack Filler is a two-component, surface applied, cementitious crack filling material for concrete and cement protection. When applied to concrete cracks that are no longer moving, the insoluble crystals within the product react with the waterproofing material to form and develop in the water bearing capillaries, effectively blocking the passage of water and ensuring permanent water tightness throughout the life of the structure.

**Physical Properties**

•         Light gray powder

•         Non-toxic

•         Working time: 20 – 30 minutes

•         Hardening time: 2 hours

•         Density 112.37 lb/cu.ft. or 1.80 g/cu.cm.

**Performance Properties**

ACRtec L43 Crack Filler is made up of 2 components. Part A the cementitious powder and Part B the reactive liquid. When Part A and B are mixed and applied to a concrete or cement surface, the material reacts with the lime in the concrete to create a penetrating waterproofing crystalline barrier. The crystals that are formed when the material is placed in the crack penetrate the capillaries of the surrounding concrete and prevent moisture from passing. ACRtec L43 Crack Filler’s crystals will be fully developed and functional after 7-10 days. Once the crystals are fully developed, the chemicals that penetrate into the surrounding existing concrete help to strengthen and reinforce the surrounding concrete. This means that cracks only need to be dry and free of debris; no routing or grinding is necessary to use ACRtec L43 Crack Filler.

**Application Rates & Packaging**

Coverage Rate:

* 80 – 120 linear feet / 5-gallon pail kit
* 25 – 37 linear meters / 19-liter pail kit

Note: The coverage rate is based upon an average application. In many cases, the coverage may be slightly lower due to the size of the crack.

Packaging:

* 5-gallon (19 liter) pail kit – 4 bags & bottles (Part A & B)

**Shelf Life & Storage**

ACRtec L43 Crack Filler should be stored in the same manner as cement, in a cool dry place. In unopened and undamaged original packaging, this product has a shelf life of 2 years. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Combine by pouring the full Part A (powder) into the full Part B (liquid) in a bucket

2\.      Mix thoroughly either manually or with a mixing blade slowly. (Do not introduce air)

3\.      Place mixture into the provided grout bag and lightly squeeze product evenly into cracks (if the product begins to dry, add a small amount of water)

4\.      Apply enough material to slightly overfill the crack, allowing full coverage as it settles.

5\.      Let it sit for 10-15 minutes

6\.      Remove excess material by scraping the surface with a putty knife or trowel

(Protect cracks from traffic for no less than 24 hours.)

**Precautions**

ACRtec L43 Crack Filler is not effective and should not be used on cracks or joints that may experience constant or repeated movement. Moving joints or cracks requires the use of an elastomeric sealant. Do not use ACRtec L43 Crack Filler on Control Joints or Cold Joints or cracks that are due to movements within the building (usually occur due to lack of control joints or building movement).

[Please refer to the ACRtec L43 Crack Filler TDS for further details.](https://alchemco.com/data-sheets)

**Application Photos**

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/ABddIsVZZbffAw1HsZ0k/media/image23.jpg) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/77pgDMdtXltSg4B4iV8N/media/image24.jpg) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/nkCMD0QzKZRdn6D4FCxL/media/image25.png)

&#x20;

#### Rust Converter and Inhibitor

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fu1oSqZHvmFskcd92h2QQ%2FACRtec%20-%20Rust%20.png?alt=media&amp;token=d77bb93d-9103-4561-81d0-8998db9889c1" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Rust Converter & Inhibitor was developed and created to dissolve and convert rust into a rust preventative compound. ACRtec Rust Converter & Inhibitor removes rust from iron, steel, aluminum, copper, and brass. It also removes rust stains from other substrates including wood, painted surfaces, glass, and porcelain. When reinforcement steel is found exposed within a concrete application and a TechCrete 2500 Waterproofing System Limited Labor and Material warranty is to be issued, ACRtec Rust Converter & Inhibitor is required to be used to protect the reinforcing steel prior to the application of any TechCrete waterproofing products.

**Key Benefits**

•         Effective, long-term solution to rust and corrosion with a simple and easy application procedure.

**Performance Properties**

•         Dissolves and converts rust.

•         Easy Application

•         Non-Toxic

**Application Rate & Packaging**

Coverage rate:

* 100 square feet / 5-gallon pail
* 9 square meters / 19-liter pail

Packaging:&#x20;

* 1 gallon bottle / 4-liter bottle

**Shelf Life & Storage**

Containers should be sealed and kept in a cool, dry location. Avoid prolonged exposure to direct sunlight. If properly maintained, this product has a shelf life of one (1) year. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Remove all loose rust and debris from the surface via wire brush (manual or grinder)

2\.      Using a roller or paint brush, apply product liberally, covering all exposed rebar

3\.      Allow product to sit until conversion process has visually completed (5 minutes)

4\.      Rinse with water or other ACRtec cleaning products and let dry.

**Precautions**

ACRtec Rust Converter & Inhibitor is not a sealing solution but is used in conjunction with other Alchemco products to enhance the sustainability and longevity of the Waterproofing Systems.

[Please refer to the ACRtec Rust Converter & Inhibitor TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

#### PU24 Elastomeric Sealant

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FR21Um7CUW7Mcq2ft1Fvm%2FACRtec%20-%20PU24%20.png?alt=media&amp;token=072c64c0-d8c6-4a05-aa84-28459596afe2" alt="" width="375"><figcaption></figcaption></figure></div>

ACRtec PU24 Elastomeric Sealant is a one-part low modulus high-performance polyurethane sealant, which cures on absorption of atmospheric moisture to form a firm and flexible rubber watertight seal for moderate cracks and control joints. ACRtec PU24 Elastomeric Sealant can be used in both horizontal and vertical applications. Excellent weather ability virtually unaffected by sunlight, rain, snow, ozone and temperature extremes.

**Key Benefits**

•         Highly resilient with excellent recovery

•         Provides permanent & uniform watertight seal

•         Excellent adhesion to most substrates

•         Weather resistant

•         Non-biodegradable & Non-toxic once cured

•         East to apply, no mixing required

•         Over painting can be done with dispersion-based paint (acrylic, vinyl)

**Physical Properties**

| Color                               | Gray                      |
| ----------------------------------- | ------------------------- |
| Density (g/c)                       | 1.3 ± 0.05                |
| Viscosity                           | Thixotropic paste         |
| Shrinkage                           | <5                        |
| Butt Joints                         | ±25                       |
| Lap Joints                          | ±50                       |
| Shore A Hardness                    | 20 - 35                   |
| Adhesion to Concrete (N)            | >25                       |
| Elongation (%)                      | >250                      |
| Chemical Resistance                 | PH 2.5 to 11.5, sea water |
| Skinning time @ 250C & 50% RH (hrs) | 24                        |
| Full cure @ 250C & 50% RH (days)    | 7                         |
| Application Temperature             | +10C to +40C              |
| Service Temperature                 | -40C to +80C              |

**Application Rate & Packaging**

Coverage Rate:

* 16 – 18 lineal feet / sausage tube
* 5 – 6 lineal meters / sausage tube

Note: The coverage rate is based upon an average application. In many cases, the coverage may be slightly lower due to the size of the crack.

Packaging:

* 20 oz (591 ml) sausage tubes / box

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

**Surface Preparation**

Ensure all surfaces and joints are clean and free from dust and oil that may affect the adhesion. A thorough wire brushing, grinding, sandblasting, or solvent cleaning may be required to expose a clean and sound substrate. If the product is to be applied on glazed surfaces like ceramic or terrazzo tiles or porcelain enamel joint surfaces, the glaze should be removed by abrading with sandpaper or wire brush. Fill any gaps, expansion joints, etc., with a bond breaking backing rod inserted into all moving joints to avoid a three-sided adhesion.

**Applying Product**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Apply product by extruding the sealant into the joint using a caulking gun, ensuring even pressure on the trigger. (on vertical joints, start from the bottom and work upwards)

2\.      Using a suitable tool or caulking gun, ensure that the product achieves a smooth glass profile and proper seal on both sides of the joint.

(for horizontal-to-vertical applications, tooled finish should be at a 45° angle)

**Joint Design**

The width of the joint should be a minimum of 4 times the anticipated movement of the joint. Joints with cyclic movement should have a width to depth ratio of 2:1 for butt joints and 1:1 for static and lap joints. The joint depth shall not exceed the width.

**Clean Up**

Remove all excess sealant with a scraper. Any spillage can be cleaned using xylene or other approved solvents. Clean all tools and equipment immediately after tooling. Hardened materials can only be removed mechanically.

[Please refer to the ACRtec PU24 Elastomeric Sealant TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

Application Photos    &#x20;

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/Rf74wXQCkmPXzBoAhZ0K/media/image26.png) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/obQCc4dLmoxBi0aKD4WH/media/image27.png)

&#x20;

#### PU44 Liquid Flashing

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F1U1rmGIJeW7SGIQkw6rI%2FACR%20-%20PU44.png?alt=media&amp;token=9b225023-d81d-4f5b-9fda-75fe8bf2c793" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec PU44 Liquid Flashing is a specially designed and created water-based hybrid liquid rubber flashing with an integral synthetic micro-reinforcement. ACRtec PU44 Liquid Flashing has been specifically designed to eliminate blistering and wrinkling which may occur in exposed or ponded situations. It has an added advantage - it does not require the use of polypropylene, polyester, or chopped strand glass fiber reinforcing fabric. ACRtec PU44 Liquid Flashing provides a fully bonded homogeneous membrane barrier with no laps, joints, or over flashings. It is not affected by UV or temperature extremes and will not become brittle with age. Excellent weather ability virtually unaffected by sunlight, rain, snow, ozone and temperature extremes.

**Physical Properties**

| Color                                                | Gray                                                                                                    |
| ---------------------------------------------------- | ------------------------------------------------------------------------------------------------------- |
| Composition                                          | Reinforced Polymerized Monomers                                                                         |
| Viscosity                                            | 14,000 cps @ 25 °C                                                                                      |
| Specific Gravity                                     | 1.35                                                                                                    |
| Solids Content                                       | >60% by weight                                                                                          |
| Tensile Strength (ASTM D412-13)                      | 6.2 N/mm² @ 200% Elongation at Break                                                                    |
| Elongation at Break (ASTM D412-13)                   | >950%                                                                                                   |
| Water Vapor Transmission (ASTM E96-05)               | 0.68 g/h.m²                                                                                             |
| Adhesion Peel Strength (ASTM D903)                   | 5.7 N/mm                                                                                                |
| Accelerated Weathering (ASTM G154-16)                | Passed                                                                                                  |
| Moving Joint Test (CSIRO)                            | Passed                                                                                                  |
| Shore A Hardness (ASTM D2240)                        | 90                                                                                                      |
| Weather Resistance                                   | No cracking and no peeling                                                                              |
| Acid Resistance (ASTM D896, Procedure 7.1)           | Pass (Nitric acid and Sulfuric Acid                                                                     |
| Salt Resistance (ASTM D896)                          | No Delaminating, blistering, emulsification, deterioration, (20% Sodium carbonate and Calcium chloride) |
| Resistance to Mold Growth (BS 5980-1980, Appendix B) | Excellent                                                                                               |
| Trafficability                                       | Based on DFT of 1 mm at 250 C, 40% RH Foot Traffic: 8 hours                                             |
| Curing Time                                          | 24 hours                                                                                                |

&#x20;

**Performance Properties**

ACRtec PU44 Liquid Flashing can also be used in fully exposed roofing, waterproofing, balconies, podium decks, landscape areas, ponds, box gutters, planter boxes, and sill flashings.

ACRtec PU44 Liquid Flashing provides an excellent moisture barrier under tiles or other rigid surfacing to shower trays, bathroom floors and walls, laundries, kitchens or patios. Most premium quality water-resistant grade ceramic tile adhesive, suitable for application to an impermeable surface, will be compatible with ACRtec PU44 Liquid Flashing.

ACRtec PU44 Liquid Flashing membrane system complies with ASTM and BS “Waterproofing of wet areas, RC Roofs, Water Retaining Structures in Buildings”.

**Application Rate & Packaging**

•         Coverage rate: &#x20;

> 30 mils dry thickness (apply at 50 mils wet)
>
> o   200 - 225 square feet / 5-gallon pail
>
> o   18.5 - 21 square meters / 19-liter pail
>
> &#x20;
>
> 40 mils dry thickness (apply at 70 mils wet)
>
> o   165 - 175 square feet / 5-gallon pail
>
> o   15 - 16 square meters / 19-liter pail
>
> Note: The coverage rate is based upon an average application. In many cases, the coverage may be slightly lower due to the size of the crack.

•         Packaging:                  &#x20;

> o   5-gallon pail / 19-liter pail

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

**Surface Preparation**

Ensure all surfaces are clean and free from dust and oil. Fill any gaps, expansion joints, etc., with ACRtec PU24 Elastomeric Sealant. Caulking and flashings are requirements of the TechCrete 2500 Waterproofing Systems

**Installation**

> *(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Apply product using a brush or roller to achieve a thickness of at least 30 mils.

2\.      Application will be in 2 to 3 coats, allowing each coat to dry, which may take up to 12 hours.

Note: PU44 can bond to damp surfaces and can be applied over PU24 shortly after placement (10+ minutes) without bubbling, peeling, or debonding.

**Clean Up**

Uncured ACRtec PU44 Liquid Flashing may be removed with clean, clear water. Removal of product may be assisted with general purpose solvents.

[Please refer to the ACRtec PU44 Liquid Flashing TDS for further details.](https://alchemco.com/data-sheets)

**Application Photos**

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/kM1M0rEmTs3h3rUHlIFI/media/image28.jpg) ![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/R7m5SErCnXP9CjC7OLnr/media/image29.jpg)

&#x20;

#### RuburCoat Coating

ACRtec RuburCoat Coating is a specially designed and created water-based liquid rubber coating principally designed to be used on concrete surfaces. ACRtec RuburCoat Coating eliminates blistering and wrinkling which may occur in exposed or ponded situations. ACRtec RuburCoat has no need for additional reinforcement - it is built into the coating. ACRtec RuburCoat Coating provides a fully bonded monolithic membrane surface with no laps, joints or over-flashings. It is not affected by UV or temperature extremes and will not become brittle with age. ACRtec RuburCoat Coating complies with ASTM and BS “Waterproofing of wet areas, RC Roofs, Water Retaining Structures in Buildings”.

**Key Benefits**

ACRtec RuburCoat Coating is ideally suited for use in fully exposed roofing, waterproofing, sub-structures, balconies, podium decks, landscape areas, ponds, box gutters, planter boxes, sill flashings, and plant room floors.

ACRtec RuburCoat Coating provides an excellent moisture barrier under tiles or other rigid surfacing to shower trays, bathroom floors and walls, laundries, kitchens or patios. Most premium quality water-resistant grade ceramic tile adhesive, suitable for application to an impermeable surface, will be compatible with ACRtec RuburCoat Coating.

**Physical Properties**

| Color                                                | Gray                                                                                                                                          |
| ---------------------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------- |
| Viscosity                                            | 14,000 cps @ 25° C                                                                                                                            |
| Specific Gravity                                     | 1.35                                                                                                                                          |
| Solids Content                                       | >60% by weight                                                                                                                                |
| Tensile Strength (ASTM D412-13)                      | 6.2 N/mm![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/I965KPwGpUmM1urfpgSM/media/image30.png) @ 200% Elongation at Break |
| Elongation at Break (ASTM D412-13)                   | >950%                                                                                                                                         |
| Water Vapor Transmission (ASTM E96-05)               | 0.68 g/h.m![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/I965KPwGpUmM1urfpgSM/media/image30.png)                          |
| Adhesion Peel Strength (ASTM D903(                   | 5.7 N/mm                                                                                                                                      |
| Accelerated Weathering                               | Passed                                                                                                                                        |
| Moving Joint Test (CSIRO)                            | Passed                                                                                                                                        |
| Shore A Hardness (ASTM D2240)                        | 90                                                                                                                                            |
| Weather Resistance                                   | No cracking and no peeling                                                                                                                    |
| Salt Resistance (ASTM D896)                          | No delaminating, blistering, emulsification, deterioration, (20% Sodium carbonate and Calcium chloride)                                       |
| Resistance to Mold Growth (BS 5980-1980, Appendix B) | Excellent                                                                                                                                     |
| Trafficability                                       | <p>Based on DFT of 1 mm at 250 C,</p><p>40% RH Foot Traffic: 8 hours</p><p>Vehicular Traffic: 24 hours</p>                                    |
| Curing Time                                          | 24 hours                                                                                                                                      |

&#x20;

**Application Rate & Packaging**

•         Coverage rate:             30 mils dry thickness (apply at 50 mils wet)

> o   200 - 225 square feet / 5-gallon pail
>
> o   18.5 - 21 square meters / 19-liter pail
>
> &#x20;
>
> 40 mils dry thickness (apply at 70 mils wet)
>
> o   165 - 175 square feet / 5-gallon pail
>
> o   15 - 16 square meters / 19-liter pail
>
> Note: The coverage rate is based upon an average application. In many cases, the coverage may be slightly lower due to the size of the crack.

•         Packaging:                   5-gallon pail / 19-liter pail

**How to Apply**

**Surface Preparation**

Ensure all surfaces are clean and free from dust and oil. Fill any gaps, expansion joints, etc. with caulking. Wait at least 12 hours before applying ACRtec RuburCoat Coating over the top of any caulking.

**Installation**

> *(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

3\.      Apply product using a brush or roller to achieve a thickness of at least 30 mils.

4\.      Application will be in 2 to 3 coats, allowing each coat to dry, which may take up to 12 hours.

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**Clean Up**

Uncured ACRtec RuburCoat Coating may be removed with clean, clear water. Removal of product may be assisted with general purpose solvents.

[Please refer to the ACRtec RuburCoat Coating TDS for further details.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### Ceramic Granules

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F1NJcoul83ML3U3b3j5p8%2FACR%20-%20Ceramic%20Granules.png?alt=media&amp;token=6812c8e8-0497-46ff-8c57-3af71ff5987b" alt="" width="188"><figcaption></figcaption></figure></div>

ACRtec Ceramic Granules are designed to provide friction resistance to ACRtec PU44 Liquid Flashing. ACRtec Ceramic Granules are only necessary if slip resistance is required for walking or vehicular traffic. ACRtec Ceramic Granules provide high-performance UV resistance for outdoor applications and the highest standard for abrasion resistance. Only the most UV stable pigments have been incorporated into the product to maintain colorfastness.

**When to apply?**

Ceramic granules need to be applied when a coefficiency of friction needs to be adhered to with regard to ACRtec PU44 Liquid Flashing. (ex. pedestrian traffic areas)

**Physical Properties**

•         Hardness (Moh’s Scale) 6.5-7.0

•         Bulk Density (ASTM C29/C29M-97) 90-100 Lbs./Cu. Ft.

•         Specific Gravity (ASTM C128-01e1) 2.65

•         Composition:

> o   Silica Sand 97.5%
>
> o   Resin 2.0%
>
> o   Colorants 0.5%

**Application Rate & Packaging**

Coverage Rate:

* Pedestrian:     &#x20;

> - 40 lbs / 100 square feet
> - 18.5 kg / 9.3 square meters

* Vehicular:       &#x20;

> - 60 lbs / 100 square feet
> - 27.22 kg / 9.3 square meters

Packaging:                  &#x20;

> 25 lbs pails / 11.34 kg pails

**Shelf Life & Storage**

ACRtec Ceramic Granules have a recommended shelf life of five (5) years when stored in dry environments. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

1\.      Immediately after the application of the ACRtec PU44 Flashing, apply ACRtec Ceramic Granules into the coating.

2\.      Apply ACRtec Ceramic Granules by manually broadcasting the granules into the flashing. Apply an even coat distributed over the entire surface of the flashing.

3\.      After the coating has completely cured, usually the next day, remove all loose granules from the surface. For best results, use a small hand blower and/or a soft-bristled push broom.

[Please refer to the ACRtec RuburCoat Coating TDS for further details.](https://alchemco.com/data-sheets)

&#x20;

### EnDuratite

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FjOj8cVWXYWUpKGy19cW1%2FEnduratite%20-%201.png?alt=media&amp;token=d0a1b23c-9e21-4df1-beb8-3a950a4377f3" alt="" width="188"><figcaption></figcaption></figure></div>

Our enDuratite line consists of cementitious products, waterstops, and admixtures designed to work in conjunction with ETT systems. These products are used to address structural repairs and deficiencies across many different scopes of work.

#### Crystalline Admix

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FK98fGTnJzRLodie0j3C1%2FenDuratite%20-%20Admix%2020-22oz.png?alt=media&amp;token=ed4fe941-e643-4d07-bc42-1bdcc2c8a3b0" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite Crystalline Admix is a permanent waterproofing admixture. When added to concrete or mortar, insoluble crystals are formed and developed in the water-bearing capillaries of the mix. This effectively blocks the passage of water, ensuring permanent water tightness throughout the life of the structure. It also permits the transmission of air and water vapor, enabling the structure to breathe. EnDuratite Crystalline Admix can also be used in waterproofing mortars and surface applied slurry systems.

The rate of crystalline development varies with the variations in the mix design and curing regime of the concrete. However, crystalline development is usually sufficient to provide full waterproofing properties approximately 7-10 days after placement.

EnDuratite Crystalline Admix is equally effective against both negative and positive water or osmotic pressure. The active chemicals within enDuratite Crystalline Admix remain dormant in the concrete or mortar to offer long term protection. Any later contact with water will reactivate the sealing process.

**Key Benefits**

•         Waterproofs for the life of the structure.

•         Maintenance-free.

•         No future reapplications.

•         Seals present and future cracks up to 1/64” (0.4 mm).

•         No VOCs.

•         Provides excellent waterproofing properties by becoming an integral part of the structure.

•         Protects concrete and reinforcement against corrosive waterborne substances.

•         Crystalline action is reactivated by contact with water providing long-term additional protection.

•         Effective against both positive and negative water pressure. (reduces vapor pressure)

•         Non-toxic or tainting.

•         Permits early backfilling without a requirement for protection boards.

•         Maintenance free.

•         Bridges hairline cracks up to 1/64” (0.4 mm).

**Application Rate & Packaging**

Coverage Rate:  &#x20;

* 1 bag / cubic yard of concrete - 3,600 psi to 7,200 psi (25mpa to 50mpa)

Packaging:

* 20 bags / 5-gallon pails

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations. Please adhere to the same storage advisories when product is being stored on the project site.

**How to Apply**

enDuratite Crystalline Admix may be added to the concrete or mortar at either the batching plant or it can be added to the mixer at the job site. It is preferable that enDuratite Crystalline Admix be added to the dry mix to ensure even distribution prior to the addition of water. If enDuratite Crystalline Admix is added after the addition of water, mixing must continue for an additional 10 minutes prior to placement of the mix.

**Concrete Curing**

For proper curing of concrete when enDuratite Crystalline Admix has been used, effort must be made to prevent concrete from drying too fast. This means that the concrete should be kept wet for at least 7 days after the initial pour of the concrete. One method to accomplish this is misting with water and then covering with a polyethylene sheet or curing blankets. Additionally, to ensure proper curing, it is recommended that the surface of the concrete be protected from any adverse environment for the 7-day curing period. Do not use any chemical curing agents in combination with enDuratite Crystalline Admix unless approved or supplied by Alchemco.

Note: Set time does not significantly impact initial setting and final setting time.

**Precautions**

Wear protective gloves, clothing, face, and eye protection. If on skin, wash with plenty of water. Move the person to fresh air and keep comfortable for breathing. If in eyes, rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If skin irritation or rash occurs, seek medical assistance. Dispose of contents/container in accordance with national regulations.

[Please refer to the enDuratite Crystalline Admix TDS for more information.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### Repair Grout

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FsAWU2J7kMLZLIEWGlLLO%2FenDuratite%20-%20Repair%20Grout%2055lb.png?alt=media&amp;token=d1ae8313-70b8-4c8f-8ac4-2c84fdfc3470" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite Repair Grout is a general purpose, cementitious grout, that has been formulated to compensate for shrinkage. enDuratite Repair Grout is supplied as a ready-to-use dry powder that is mixed with clean, clear water to create a trowelable grout that can be applied up to a thickness of 4” (100 mm). enDuratite Repair Grout contains Alchemco Crystalline Admixture and proprietary additives such as corrosion inhibitors providing superior waterproofing characteristics. EnDuratite Repair Grout has been tested to NSF/ANSI 61 standards.

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FQDOPggj0LgUMmXZl993c%2FScreenshot%202026-06-23%20at%2010.54.09.jpg?alt=media&amp;token=718adf96-af99-4589-80a6-99d8fc6192af" alt=""><figcaption></figcaption></figure>

**Application Rate & Packaging**

•         Coverage rate:            &#x20;

> 7 square feet / 55 lb pail @ 3/4” thick
>
> (.65 square meter / 25 kg @ 1 cm thick)
>
> 200 linear feet @ ¾" x ¾" cant strip
>
> (62.5 meter run @ 2cm x 2cm cant strip)

•         Packaging:                  &#x20;

> 55 lb pail / 25 kg bag

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and according to the recommended guidelines. Please adhere to the same storage advisories when the product is stored on the project site.

**When and where to apply?**

Enduratite Repair Grout should be used when concrete remediation is required. Areas where repair grout would be most effective are concrete spalling conditions, repairing air/bug holes/tie rods, repairing unconsolidated concrete, and any areas where concrete has been deemed to be failed. EnDuratite Repair Grout can be used to create a 45-degree cant when transitioning from horizontal to vertical. EnDuratite Repair Grout can also be used to close off through cracks, where the underside of the concrete structure can be accessed. EnDuratite Repair Grout is intended to restore continuity within the concrete substrate, eliminate voids where water may travel or pressurize, and provide a sound, cementitious repair prior to final detailing or service exposure. For active leaks, water should first be stopped, and the void properly opened and treated with ETT before placement of the Repair Grout.

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

**Preparation of Substrate**

The substrate surface must be free from oil, grease, or any loosely adherent materials. If the concrete surface is defective or has laitance, it must be cut back to sound base. Bolt holes or fixing pockets must be blown clean of any dirt or debris. All absorbent surfaces must be well saturated with clean water, but free of any surface water or puddles prior to the application of enDuratite Repair Grout.

**Mixing**

•         Neat:

> o   Add 1.18gal - 1.26gal (4.5L - 4.8 L) of clean water to 55lb pail (25kg bag).
>
> (Add water in first, then powder; increase or decrease water to desired viscosity)
>
> o   A forced-action mixer may be used at a speed of (400 500 rpm) for 2 - 3 minutes, or hand mixing is allowed.

•         Extended:

> o   With a 55lb pail (25kg bag) 24.25lb (11kg) of 13/64" (5mm) - 3/8" (10mm) pea gravel.

**Curing**

If form work type of repair is used, leave the form work in place for at least 3 days. Cure the exposed areas with appropriate curing methods.

**Cleaning**

EnDuratite Repair Grout should be removed from tools, equipment and mixers with clean water prior to the initial set. Cured material can only be removed mechanically or by a metal scraper.

**Product Placement**

At 74 °F (23 °C), place the grout within 20 minutes of mixing. enDuratite Repair Grout can be placed in thicknesses up to 4” (100 mm) in a single pour.

Sufficient grout must be prepared before starting. The time taken to pour a batch must be regulated to match the time required to prepare the next batch.

Pouring should be done from one side of the void to eliminate any air or water becoming trapped under the baseplate. It is advisable to pour the grout across the shortest distance of travel. The grout head must be maintained at all times to ensure a continuous grout front with no air entrapment.

[Please refer to the enDuratite Repair Grout TDS for more information.](https://alchemco.com/data-sheets)

**Application Photos**

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/QwwcngIzMsYU45DDjKXt/media/image32.jpg)

Soffit crack treatment

&#x20;

#### Foundation

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FAbktw3FXOHD8dHolaElE%2FenDuratite%20-%20Foundation%2055lb.png?alt=media&amp;token=85b1d8ec-d730-49d8-b204-e16441f6c942" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite Foundation is a single-component, cementitious based, surface-applied, crystalline product that when mixed with water, creates a slurry for concrete and cement protection. When applied to the surface of concrete or cement-based materials, insoluble crystals form and develop in the water bearing capillaries, effectively blocking the passage of water and ensuring permanent water tightness throughout the life of the structure.

**Key Benefits**

•         Becomes an integral part of the structure.

•         Provides long-lasting waterproofing coverage.

•         Protects concrete against corrosive substances.

•         Crystalline technology will continue to react to water contact.

•         May be used against negative or positive water pressure.

•         Non-toxic

**Physical Properties**

•         Gray fine powder

•         Non-toxic

•         Working time - up to 1 hour with continuous stirring

•         Hardening time - 4 - 6 hours

•         Density 112.37 lb/ft³ - 1.80 g/cm³

**Performance Properties**

•         Permanently waterproofs concrete.

•         Activates and reactivates in the presence of water.

•         Penetrates below the surface of the concrete.

•         Protects reinforcing steel against corrosion.

**Performance Timeline**

EnDuratite Foundation’s crystals will be fully developed and functional after 7-10 days. Even after the crystals are fully developed, the chemicals that penetrate the concrete store themselves within the concrete and activate when they encounter water. If a crack forms after Foundation is applied, the crystals will continue to grow and protect the concrete from water damage.

EnDuratite Foundation can be used against negative and positive water or hydrostatic pressure and can be used on an internal or external surface. It is best practice to apply enDuratite Foundation to surfaces which face direct water contact to encourage accelerated penetration and crystallization of the chemicals.

**Application Rate & Packaging**

•         Coverage rate:            &#x20;

> 275 square feet / 55 lbs pail / 2 coats
>
> 25.5 square meters / 25 kg pail / 2 coats
>
> Thickness: 30 mils (wet film thickness)
>
> Note: Rate shown is based upon 2 coats. 3 coats can be applied for underground, buried or tank holding vessels.

•         Packaging:                 &#x20;

> &#x20;55 lb pail / 25 kg pail

**Shelf Life & Storage**

EnDuratite Foundation should be stored in the same manner as cement in a cool, dry place. In unopened and undamaged original packaging, this product has a shelf life of 2 years. Please adhere to the same storage advisories when product is being stored on the project site.

**When and where to apply?**

EnDuratite Foundation should be used when concrete remediation is required. Areas where foundation would be most effective are foundation walls, basement slabs, retaining walls, tunnels, elevator pits, and other concrete surfaces. EnDuratite Foundation is commonly used in conjunction with enDuratite Repair Grout and enDuratite Plug to stop active leaks.

*(see* [*Surface Preparation*](/alchemco-documentation/surface-preparation.md) *for treatment of active leaks)*

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

**Surface Cleaning & Preparation**

EnDuratite Foundation must be applied to a clean, dry, dust-free concrete surface, at least 14 days after the placement of new concrete. If the concrete is older, existing concrete needs to be cleaned. On some projects, it may make more sense to utilize shot blasting or grinding to prepare the surface for the application of the system and related products. This is acceptable in lieu of chemical cleaning.

**Foundation Application**

Note: EnDuratite Foundation must be applied to concrete or cement surfaces that are wet. If the surface to be treated is dry, spray water to the surface of the concrete until saturated.

1\.      Add 1 quart of water to 3 quarts of powder and mix.

2\.      Once mixed, continue to stir.

3\.      Apply the slurry mixture with a concrete brush using aggressive circular motions.

4\.      Ensuring even coverage, let the first coat harden.

5\.      Apply the second coat.

**Precautions**

EnDuratite Foundation is not an effective waterproofing system for joints that experience constant or repeated movement. Consult an Alchemco Technical Representative for project specific recommendations before specifying enDuratite Foundation in elevated structures. enDuratite Foundation will change the color of the surface it is applied to. Consult your Alchemco representative for advice regarding applications with specific aesthetic requirements.

[Please refer to the enDuratite Foundation TDS for more information.](https://alchemco.com/data-sheets)

&#x20;

#### MLastic

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2Fq6bu8pTT4EbCkUgQxezZ%2FenDuratite%20-%20Mlastic%205gals.png?alt=media&amp;token=0804d3a3-2411-4816-adba-d935af35c6d8" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite MLastic Cementitious Flashing is a one component, cementitious waterproofing flashing that has been designed to have some flexibility with movement from heat and cold. With the simple addition of water, the powder transforms into a high-quality flashing system designed to be applied over concrete and masonry surfaces. Once cured, the finished surface provides a watertight flashing barrier with outstanding adhesion properties that are permeable to vapor and offers excellent freeze-thaw durability. The product is compatible with cement-based adhesives and flashings for subsequent layers.

It was designed and created using cross-linking polymer technology with high contents of Ethylene Vinyl Acetate. The use of this technology allows the product to utilize UV rays to increase its performance over time. It is an elastomeric polymer that produces materials that are “rubber-like” in softness and flexibility.

**Key Benefits**

•         Flexible

•         Low VOC content

•         Bonds to damp surfaces (no primer required)

•         One part (just add potable water)

•         Suitable for immersion and underground applications.

> o   Positive pressure to 230 ft (70 m), head pressure (.69 MPa).
>
> o   Negative pressure to 82 ft (25 m), head pressure (.245 MPa).

•         Resistant to salts and carbonation Increases resistance of substrate to deicing salts.

•         Superior abrasion resistance.

•         Nonflammable; low odor.

•         Easily applied to clean, sound substrates.

•         May be over coated

**Physical Properties**

•         Gray in Color

•         Cement modified with polymers

•         Pot life: 45 minutes @ 73 °F / 23 °C

•         Density: 0.86 oz/in³ / 1.5 g/cm³

•         pH: 13

•         Re-coat time: 4 to 6 hours

•         Application rate per pail: 53 ft² / 5 m²

•         Cure time for immersion: 72 hours

**Shelf Life & Storage**

Factory-sealed containers of this product have a shelf life of two (2) years if stored at temperatures greater than 32 °F (0 °C) and less than 100°F (38 °C). Please adhere to the same storage advisories when the product is stored on the project site.

**Application Rate & Packaging**

•         Coverage rate:            &#x20;

> 54 square feet / 26 lb pail
>
> 5 square meters / 12 kg pail

•         Packaging:                  &#x20;

> 26 lb pail / 12 kg pail

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

1\.      Add ½ gallon of water in a clean pail.

2\.      Gradually add product, constantly stirring with a low-speed mixer.

3\.      Mix until homogeneous

4\.      Apply with a trowel to pre-wet concrete; back rolling with a paint roller will provide a textured surface if required.

**Precautions**

It is recommended that PPE be used such as protective eyewear, gloves, and boots. Do not apply on asphalt-based materials or products.

Note: The product should be applied in a minimum of 2 coats. Each coat should dry a minimum of 6 hours before the application of the next coat. A total thickness of 1/8” (2 mm) is required. Any areas where enDuratite MLastic Cementitious Flashing will make contact with metal or plastic - a bead of Elastomeric Caulking should be utilized.

[Please refer to the enDuratite MLastic TDS for more information.](https://alchemco.com/data-sheets)

**Application Photos**

<div><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/6IKKL3gJGO7aBVE1VlUh/media/image33.jpg" alt="Floor-to-wall transition" width="375"> <img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/Rhs2qbnarvQ8Rz1SVbe5/media/image34.jpg" alt="Honeycombed wall treatment in tank" width="375"></div>

&#x20;                                             &#x20;

&#x20;

#### CemCoat

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FBegI4sOzIhJr3EFvcTVC%2FenDuratite%20-%20CemCoat%205%20gals.png?alt=media&amp;token=6ea6bed0-4d46-46ef-9326-3c2bc391416c" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite CemCoat is a single-component, cementitious waterproofing coating that has been designed to have some flexibility with movement from heat and cold. With the simple addition of water, enDuratite CemCoat powder transforms into a high-quality coating system. enDuratite CemCoat is designed to be applied over concrete and masonry surfaces. Once cured, the finished surface provides a watertight coating barrier with outstanding adhesion properties, that is permeable to vapor and offers excellent freeze-thaw durability. The product is compatible with cement-based adhesives and coatings for subsequent layers.

EnDuratite CemCoat was designed and created using advanced cross-linking polymer technology, with high contents of EVA (Ethylene Vinyl Acetate). This use of this technology allows the product to increase its performance over time (even when UV rays are present). It is an elastomeric polymer that produces materials that are “rubber-like” in softness and flexibility.

**Key Benefits**

•         Flexible

•         Low VOC content

•         Bonds to damp surfaces (no primer required)

•         Single part (just add potable water)

•         Suitable for immersion and underground applications.

•         Positive pressure to 230 ft (70 m), head pressure (.69 MPa).

•         Negative pressure to 82 ft (25 m), head pressure (.245 MPa).

•         Resistant to salts and carbonation Increases resistance of substrate to deicing salts.

•         Superior abrasion resistance.

•         Nonflammable; low odor.

•         Easily applied to clean, sound substrates.

•         May be over coated

**Physical Properties**

•         Gray in Color

•         Cement Modified with Polymers

•         Pot Life: 45 minutes @ 73 °F / 23 °C

•         Density: 0.86 oz/in³ / 1.5 g/cm³

•         pH: 13

•         Re-coat Time: 4 to 6 hours

•         Application Rate per Pail: 53 ft² / 5 m²

•         Cure Time for Immersion: 72 hours

**Shelf Life & Storage**

Factory-sealed containers of this product have a shelf life of two (2) years if stored at temperatures greater than 32 °F (0 °C) and less than 100°F (38 °C). Please adhere to the same storage advisories when the product is stored on the project site.

**Application Rate & Packaging**

•         Coverage rate:            &#x20;

> 54 square feet / 26 lb pail
>
> 5 square meters / 12 kg pail

•         Packaging:                  &#x20;

> 26 lb pail / 12 kg pail

**How to Apply**

*(see* [*ETT Application Procedure – Order of Operations*](/alchemco-documentation/ett-application-procedure.md#order-of-operations) *prior to applying)*

5\.      Add ½ gallon of water in a clean pail.

6\.      Gradually add product, constantly stirring with a low-speed mixer.

7\.      Mix until homogeneous

8\.      Apply with a trowel; back rolling with a paint roller will provide a textured surface if required.

**Precautions**

It is recommended that PPE be used such as protective eyewear, gloves, and boots. Do not apply on asphalt-based materials or products.

Note: The product should be applied in a minimum of 2 coats. Each coat should dry a minimum of 6 hours before the application of the next coat. A total thickness of 1/8” (2 mm) is required. Any areas where enDuratite CemCoat will make contact with metal or plastic - a bead of Elastomeric Caulking should be utilized.

[Please refer to the enDuratite CemCoat TDS for more information.](https://alchemco.com/data-sheets)

&#x20;

#### E – Series Waterstop (E6 & E10)

EnDuratite E-Series Waterstop is a PVC waterstop created to provide architects, civil engineers, and building contractors with a modern adaptation of a tried-and-true method. E-series Waterstop prevents the seepage of water through floor-to-wall joints, expansion joints, and construction joints either vertically or horizontally. Having great flexibility, they are especially recommended for joints where movement is expected. Strict quality control is observed at all stages of manufacturing, and no salvaged material is at any time used in the manufacture of enDuratite E-Series Waterstop.

**Physical Properties**

| Color                | Blue   |
| -------------------- | ------ |
| Tensile Strength     | 14 mPa |
| Elongation at break  | 300%   |
| BS Softness          | 45     |
| Specific Gravity     | 1.3    |
| Water absorption     | None   |
| Water soluble matter | None   |

&#x20;

**Sizes**

•         E6 Waterstop

> o   Thickness         1/16 - 3/16” (.16 cm - .48 cm)
>
> o   Width              6” (15.24 cm)

•         E10 Waterstop

> o   Thickness         1/8 - 3/16” (.3 cm - .48 cm)
>
> o   Width              9-5/8” (24.45 cm)

**Shelf Life & Storage**

Store in a cool, dry place and keep away from all sources of heat and sunlight. The shelf life is up to 24 months if stored in unopened containers and as per recommendations.

**Typical PVC Applications**

PVC is more resistant than rubber to oxidation, effects of ultra-violet light, and the corrosiveness of petroleum products. enDuratite E-Series Waterstop is suitable for application in water retaining structures where low hydrostatic head pressures are involved. Typical applications are joints in swimming pools, foundation walls, reservoirs, dams, silos, and other subterranean or water retaining concrete structures.

**Application Rates & Packaging**

•         E6 Waterstop              49 ft / 15 m     1 per package

•         E10 Waterstop            39 ft / 12 m     1 per package

**How to Apply**

1\.      Install into wall and floor joints (horizontal or vertical) by using split shuttering.

2\.      Place the waterstop with the flat side towards the working surface at the center of the joint.

3\.      Ensure the waterstop is held securely during concreting and pay close attention to the placement and compaction of the concrete around.

> a.      It is best held between two strips of shuttering for horizontal joints
>
> b.      It is best held by wedging the par to be left exposed between small pieces of wood for vertical **joints (NO NAILS!)**

[Please refer to the enDuratite E-Series Waterstop TDS for more information.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### BentoStop

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FirO5h3vpzGLpUfSbh04A%2FenDuratite%20-%20Bentostop.png?alt=media&amp;token=31031b5e-1b84-4170-b32c-0346f90ed283" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite bentoSTOP is a swellable bentonite waterstop engineered from raw rubber and polymer materials, modified through a chemical process to enhance its performance. It combines the flexibility of rubber with the water-reactive properties of bentonite to create an effective barrier against water intrusion.

When exposed to water, bentoSTOP exhibits excellent flexibility, expansion capability, and plasticity, ensuring a durable and watertight seal. This product is designed for reliable performance in a wide range of waterproofing applications.

**Key Benefits**

•         Superior Hydrophilic Waterproofing

•         Highly flexible and extreme adaptability

•         Exorbitant temperature durability -20°C to 80°C (-4°F to 176°F)

•         Versatile Application

•         Chemical Resistance

•         Permanent Seal

•         Easy installation and low maintenance

**Physical Properties**

•         Density: 1.55–1.70 g/cm³ (96.8–106.1 lb/ft³)

•         Color: Black rubber strip

•         Expansion Rate: ≥150%, ≥220%, ≥300% (depending on specifications)

•         High-Temperature Resistance: No flow observed at 80°C (176°F) for 5 hours

•         Low-Temperature Resistance: No cracking at -20°C (-4°F) for 5 hours

**Performance Characteristics**

•         Stable under standard ambient conditions (0°C to 40°C / 32°F to 104°F) when kept dry

•         Resistant to environmental factors such as water, frost, and moderate alkaline or acidic substances when stored properly

•         Non-Flammable

•         Hydrostatic Pressure: 70 m (231 ft)

**Shelf Life & Storage**

Factory sealed containers of enDuraTite bentoSTOP are guaranteed to be of first quality for one (1) year if stored at temperatures >32°F (0°C) and <110°F (43°C). Store properly in the original packaging, in cool and dry conditions. Protect from water.

**Sizes**

•         25 mm x 20 mm x 5 m (0.98 in x 0.79 in x 16.4 ft) (30 m/box = 98.4 ft/box)

•         20 mm x 15 mm x 6 m (0.79 in x 0.59 in x 19.7 ft) (36 m/box = 118.1 ft/box)

•         20 mm x 10 mm x 9 m (0.79 in x 0.39 in x 29.5 ft) (54 m/box = 177.2 ft/box)

**How to Apply**

**Preparation**

Ensure the concrete surface is clean, dry, and dust free. For new concrete, wait at least 14 days post-pour before application. Old surfaces should be free from any sealers or coatings, and cracks must be cleaned.

**Installation**

•         For complete system and product installation guides please contact your Alchemco representative or Alchemco's Technical Department.

**Precautions**

Prevent bentoSTOP from coming into contact with water before installation to avoid premature swelling, which can compromise its effectiveness.

**Limitations**

Do not apply when rain is expected. bentoSTOP is designed to react with water, so it must not come into contact with water before installation to prevent premature swelling, which could compromise its performance. bentoSTOP must be properly secured during installation to prevent displacement and must have sufficient concrete cover to ensure its effectiveness.

[Please refer to the enDuratite BentoStop TDS for more information.  ](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### M35 Seal Tape

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FhOE651Eg6UkDoMXJPFDp%2FenDuratite%20-%20M35%20.png?alt=media&amp;token=a8178631-e061-434a-bd03-2851a76601ea" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuratite M35 Seal Tape is a self-adhered, waterproofing airtight tape designed for sealing building joint areas. This product has a butyl rubber adhesive that offers superior adhesion durability.

**Product Construction**

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FMTBN3yoZInoIdh5oDo2z%2FScreenshot%202026-06-23%20at%2010.51.57.jpg?alt=media&amp;token=6831865c-7c69-4db6-aa8c-ff97edcdc7ae" alt=""><figcaption></figcaption></figure>

**Key Benefits**

•         High level of adhesion to a variety of substrates.

•         Instant sealing, no drying required.

•         No adhesive melting or staining in summer heat.

•         High elasticity - crack-bridging and accommodates joint movements.

•         Very low vapor transmission rate.

•         Low permeability for air, gas, and moisture.

•         Bonds to most construction materials without a primer.

•         Solvent free and non-toxic.

•         Paintable with water, oil, and rubber-based paints.

**Physical Properties**

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F1bzNrP6gqErAK4kwTcaM%2FScreenshot%202026-06-22%20at%2021.51.01.jpg?alt=media&amp;token=72126074-b67c-443f-8853-23d77b21eab2" alt="" width="563"><figcaption></figcaption></figure></div>

**Shelf Life & Storage**

Temperatures below 40°F (4 °C) will result in a loss of adhesive tack and, in extreme cases, will result in no bond to the substrate. Overnight storage must be available to keep the temperature of the seam tape at a minimum of 60°F (15 °C). Hot boxes for job site storage must be provided to maintain a minimum product temperature of 40°F (4°C).

**Application Rate & Packaging**

Coverage Rate:           &#x20;

> 9” x 50’ / roll
>
> 37.5 square feet / roll

Packaging:                  &#x20;

> 9” x 50’ rolls

**How to Apply**

1\.      Apply 10-15 mils of ACRtec PU44 Liquid Flashing to the surface on either side of the joint to be covered, as wide as the adhesion side of the tape.

2\.      While still wet, remove approximately 2” (50 mm) of the liner and carefully position the tape into place.

3\.      Steadily remove the liner while applying firm pressure to the tape surface as it meets the substrate surface.

4\.      Use a hand roller (rubber, wood or steel-J roller) to apply sufficient pressure to the tape to ensure proper adhesion and avoid air getting trapped underneath.

5\.      Immediately after tape installation, apply another coat of 10-15 mils of PU44 over the top of the tape edges and out onto the deck area.

During the process, the fleece will be imbedded.

**Precautions**

Not to be used as an exposed waterproofing material, must be finished over with ACRtec PU44 Liquid Flashing.

The paper release liner should not be walked or stood on at any time as this may result in slips or failures. Discard the paper release liner in a designated container.

[Please refer to the enDuratite M35 Seam Tape TDS for more information.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### PRstop

<div align="left"><figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F5Hx9tpQfx9XWFBwAsLoD%2FenDuratite%20-%20PRstop.png?alt=media&amp;token=e06aa657-d203-403e-953d-d737b8ff5e91" alt="" width="188"><figcaption></figcaption></figure></div>

EnDuraTite PRstop is a high-performance swellable rubber waterstop, expertly engineered from raw rubber and polymer materials. This innovative product combines the natural flexibility and durability of rubber with advanced water- reactive properties, forming an effective and long-lasting barrier against water intrusion. When in contact with water, enDuratite PRstop demonstrates exceptional flexibility, expansion capability, and plasticity, ensuring a reliable and watertight seal. Designed for versatility and durability, it is ideal for a wide range of waterproofing applications.

**Key Benefits**

•         Superior Hydrophilic Waterproofing

•         Highly flexible and extreme adaptability

•         Exorbitant Temperature Durability -20℃ to 80℃ (-4°F to 176°F)

•         Versatile Application

•         Chemical Resistance

•         Permanent Seal

•         Easy installation and low maintenance

**Physical Properties**

•         Density: 1.55–1.70 g/cm³

•         Color: Red rubber strip

•         Expansion Rate: ≥150%, ≥220%, ≥300% (depending on specifications)

•         High-Temperature Resistance: No flow observed at 80°C for 5 hours

•         Low-Temperature Resistance: No cracking at-20°C for 5 hours

**Performance Characteristics**

•         Stable under standard ambient conditions (0°C to 40°C) when kept dry

•         Resistant to environmental factors such as water, frost, and moderate alkaline or acidic substances when stored properly

•         Non-Flammable

•         Hydrostatic Pressure 70m (231ft)

**Shelf Life & Storage**

Factory sealed containers of enDuraTite PRstop are guaranteed to be of first quality for one (1) year if stored at temperatures >32°F (0°C) and <110°F (43°C). Store properly in the original packaging, in cool and dry conditions. Protect from water.

**Application Rate & Packaging**

•         Packaging:       20 mm x 10 mm x 10meter Rol (80 Meters per Box)&#x20;

**How to Apply**

**Preparation**

Ensure the concrete surface is clean, dry, and dust-free. For new concrete, wait at least 14 days post-pour before application. Old surfaces should be free from any sealers or coatings, and cracks must be cleaned.

**Installation**

1\.      Adhere PRstop to concrete using ACRtec PU24.

2\.      Do not nail PRstop as nails may prevent swelling.

**Limitations**

Do not apply when rain is expected. PRstop is designed to react with water, so it must not come into contact with water before installation to prevent premature swelling, which could compromise its performance. PRstop must be properly secured during installation to prevent displacement and must have sufficient concrete cover to ensure its effectiveness. PRstop is not designed for movement. Do not use PRstop in expansion joint conditions or if movement is expected.

[Please refer to the enDuratite PRstop TDS for more information.](https://alchemco.com/data-sheets)

#### &#x20;

&#x20;

#### CSS-Series (Seismic)

The Compression Seismic Seal (CSS) is made of open micro-cell polyurethane foam impregnated with a hydrophobic polymer sealing compound, which can be used in a variety of waterproofing applications. The polyurethane foam has constant internal forces built into each cell. These cells continuously push against each other and the sidewalls of an opening. This force is used to keep out water, moisture, dust, sound, and weather, providing a permanent, watertight seal.

The self-adhering material is used in various applications. In areas where seismic activity is a consideration, the CSS will respond to multiple, simultaneous movements. The texture of the closed cell material resembles sponge-packing foam. The top surface of the profile has a tough, silicone exposed face to match the color of adjoining structures.

The CSS is typically used in vertical applications or non-pedestrian horizontal applications, along with difficult-to-reach areas, pre-cast panels, isolation joints, window frame closures, and any other opening which requires a resilient, waterproof closure that must also be aesthetically pleasing.

**Features and Benefits**

•         Permanently conforms to varying joint contours.

•         Excellent compression recovery due to seismic activity.

•         No thermal-set; material remains resilient and flexible down to -40°F temperatures.

•         Ease of installation: Simply clean the surface, peel off the protective tape, and press into place.

•         EMS provides a standard five-year material warranty.

•         Double the protection: The CSS material has twice the movement capabilities (+/- 50%) of the standard Contour Seal (CS) system.

•         Available in Dow Corning® 790 and Pecora 890.

•         Colors: Actual colors may vary. See Dow Corning® 790 and Pecora 890 Color Chart for exact color match.

![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/Xe9PFRcdk6nrN195AXpp/media/image37.png)

<h3 align="center"> Physical Properties of Compression Seismic Seal</h3>

<table><thead><tr><th width="374.5703125">Properties</th><th>Result</th></tr></thead><tbody><tr><td>Thermal Conductivity</td><td>0.05 W/m. °C</td></tr><tr><td>Temperature Range</td><td>-40° F to 185°F</td></tr><tr><td>Tensile Strength</td><td>ASTM 3574, meets 21 psi min.</td></tr><tr><td>Ultimate Elongation</td><td>ASTM 3574, 125% +/- 20%</td></tr><tr><td>Compression Set</td><td>ASTM 3574, Max. 2.5%</td></tr><tr><td>Shear Strength</td><td>Min. 8N/cm<img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/I965KPwGpUmM1urfpgSM/media/image30.png" alt=""></td></tr><tr><td>Mildew Resistant</td><td>Excellent</td></tr><tr><td>Staining</td><td>None</td></tr><tr><td>Flammability</td><td>UL94VO Self Extinguishing</td></tr><tr><td>Flash Point</td><td>590°F (310°C)</td></tr><tr><td>Durometer Hardness</td><td>ASTM D2240, Shore A 15pts.</td></tr></tbody></table>

&#x20;

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FNYhVoxyBWrDyypmJB6Pm%2FScreenshot%202026-06-22%20at%2022.48.17.jpg?alt=media&amp;token=7b75f908-92a1-4127-9b49-cd19ddd4cbe9" alt=""><figcaption></figcaption></figure>

#### &#x20;

&#x20;

#### CR-Series Membrane System

The Polycrete CR-Series Membrane System is designed for parking decks and open-air structures. It features a preformed, elastomeric membrane, which is fusion-bonded to the concrete deck with Polycrete Elastomeric Concrete. Once installed, this system provides a watertight seal while flexing in response to fluctuations in joint width.

There are several sizes in the CR-Series group to accommodate different joint opening and movement capabilities.

The membrane incorporates a center section with a heavy-duty web structure and integral edge flaps with factory punched holes. The Polycrete penetrates the holes to secure the membrane to the base of the concrete block out. The center web configuration is precisely located to exert a continuous and uniform horizontal force against the joint walls.

The CR-Series shapes are specifically designed for applications where maintaining a smooth walking surface is important. A series of grooves across the top surface of the cross-section allows the seals to provide a virtually constant level surface during cyclic action.

**Physical Properties**

The system consists of two items: an elastomeric membrane and a field-cured header material. The membrane is available in several sizes. It is an extruded shape made from an EPDM-based, thermo rubber material (Santoprene). The material’s physical properties are as shown in Table 1. The Polycrete consists of a combination of a resin mixture and a gradation of sands and aggregate sizes, blended per recommendations of the manufacturer. (See the Polycrete data sheet for further information and technical properties.)

<div><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FWWOqv9V2sNwTJBlF5UL8%2FScreenshot%202026-06-22%20at%2022.51.00.jpg?alt=media&amp;token=e65c132d-9dfb-4498-b30f-97cda48ba710" alt="" width="375"> <img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/inrBwDsTXtNN1AayCfhK/media/image40.png" alt="" width="563"></div>

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FshIq1s1dyT7XBpAnbAEk%2FScreenshot%202026-06-22%20at%2022.50.24.jpg?alt=media&amp;token=c97e8088-7b2f-442f-8e29-e2d0015a814d" alt=""><figcaption></figcaption></figure>

**How to Apply**

(coming soon)

#### &#x20;

&#x20;

#### CST(2FRH)-Series

The CST(2FRH) (horizontal application) seal features a waterproof silicone face on each side of a fire-retardant impregnated foam sealant, without the need for an additional set of intumescent bellows. The CST(2FRH) is designed for expansion joints in decks and floors where watertightness, fire-rating and traffic durability are required. CST(2FRH) is a sound-attenuating, insulating, joint sealant intended for both retrofit and new horizontal expansion joints. No additional fire blankets, mineral wool, liquid sealants or cover plates are required, although the can be used with the joint system.

The CST(2FRH) provides a factory-controlled, watertight, clean handling, UV stable, sound attenuating, energy efficient and fire-rated joint seal in a single, unified installation process. Depending on the application, CST(2FRH) can be supplied uncoated or coated on one or both sides. Uncoated material is to be used in enclosed applications only.

Available sizes range from 1/2” (12mm) to 4 1/2” (112mm), with sizes 1” and greater supplied in 1/4” increments. Depth of the seal is 2”, 3” or 4” depending on listing. Listings with a 2” depth have a fire rating of 1 or 2 hours.

**Features and Benefits**

•         Watertight: Installed with tensionless bellows, which when installed with an optional silicone bead on the weather face, maintains a watertight seal.

•         Fire-Rated: The fire-retardant-impregnated foam when properly installed, provides a 2 hour fire rating in accordance with UL-2079.

•         Sound Attenuation: Minimizes sound transfer which can occur at expansion joints and wide openings.

•         Non-Invasive Anchoring: There is no drilling or modification to the substrate required. This includes embedded pins, anchors, screws, bolts, tracks, rails, flanges or cover plates. The system is secured to the joint substrate by means of the internal recovery force of the foam, the epoxy adhesive, and the optional injected sealant beads at the joint face.

•         Movement Capability: +/- 25% or +/- 50% depending on UL listing.

•         Joint –Size Variation: Additional product features include controlling uniform bellows appearance and the ability to handle variations in joint size through incremental sizing.

•         Factory Fabricated Transitions: Continuity of seal through changes in plane and direction is essential to system performance.

**Testing and Standards**

•         CST(2FRH) has been tested and certified under UL 2079. It meets the requirements of ASTM E1966, ASTM E119, and ASTM E1399. UL 2079, like ASTM E119, was developed to encompass the fire testing of ASTM E119 and movement cycling regime of ASTM E1399.

•         It is also tested to ASTM E283, 330, 331, and 547 to confirm its sealing capabilities through its entire stated movement range. ASTM E90 testing has been completed to verify the sound attenuating properties of the system.

&#x20;

&#x20;

<figure><img src="https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/qDNjfSSDgCiVYZq5x5pz/media/image42.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FNQblRMBrqbbfns8Us5hg%2FScreenshot%202026-06-23%20at%2010.50.08.jpg?alt=media&amp;token=44e14e1f-71c6-4988-8fa6-dbb603deb35b" alt=""><figcaption></figcaption></figure>

**How to Apply**

•         Please refer to [CST(2FRH)-Series](#cst-2frh-series) Install Guide for full installation

#### CST(2FR)-Series

(coming soon)

**How to Apply**

•         Please refer to [CST(2FR)-Series](#cst-2fr-series) Install Guide for full installation

#### &#x20;

&#x20;

#### CSH-Series (Horizontal)

The Horizontal Compression Seismic Seal (CSH) is composed of an open micro-cell polyurethane foam impregnated with a hydrophobic, polymer sealing compound, which can be used in a variety of waterproofing applications. The foam has constant internal forces built into each cell. These cells continuously push against each other and the sidewalls of an opening to keep out water, moisture, dust, sound and weather, providing a permanent, watertight seal.

When used in horizontal applications, the self-adhering material is augmented with a two-part epoxy to ensure that the system will adhere to the substrate in the horizontal position. The system was developed to waterproof most larger vertical and horizontal construction movement joints or joints anticipating seismic movement.

The CSH is typically used in pedestrian horizontal applications. The colored silicone face allows the material to blend in with the surroundings in an aesthetically pleasing manner. Once installed in the joint, the material expands to adapt to the width of the joint, and the irregularities of the substrate provided, such profile changes are not sudden or extreme.

**Features and Benefits**

•         Can accommodate rapid rates of joint movement.

•         Supplied in pre-compressed state for ease of installation.

•         Two-part epoxy supplied for installation in horizontal applications.

•         Does not rely on the silicone coating or the adhesion of a field-applied bead of sealant to provide a watertight seal.

•         Consistent depth of product.

•         Excellent compression recovery.

•         Permanently elastic and weather-tight.

•         Used for joints up to 8” wide.

•         Allows for up to 100% (+/- 50% movement).

•         Not based on asphaltic or bitumastic impregnation.

•         Available in Dow Corning® 790 and Pecora 890.

•         Colors: Actual colors may vary. See Dow Corning® 790 and Pecora 890 Color Chart for exact color match.

•         LEED Credits: Up to two (2) LEED credits depending on the location of the project.

<h3 align="center">Physical Properties of Compression Seismic Seal </h3>

| Properties           | Result                       |
| -------------------- | ---------------------------- |
| Thermal Conductivity | 0.05 W/m. °C                 |
| Temperature Range    | -40° F to 185°F              |
| Tensile Strength     | ASTM 3574, meets 21 psi min. |
| Ultimate Elongation  | ASTM 3574, 125% +/- 20%      |
| Compression Set      | ASTM 3574, Max. 2.5%         |
| Shear Strength       | Min. 8N/cm                   |
| Mildew Resistant     | Excellent                    |
| Staining             | None                         |
| Flammability         | UL94VO Self Extinguishing    |
| Flash Point          | 590°F (310°C)                |
| Durometer Hardness   | ASTM D2240, Shore A 15pts.   |

&#x20;

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2FBPx0dHO6402f36DfhncK%2FScreenshot%202026-06-23%20at%2010.42.12.jpg?alt=media&amp;token=3a2d770a-e330-4d4b-9368-b034517e2895" alt=""><figcaption></figcaption></figure>

**How to Apply**

•         Please refer to CSH-Series (Horizontal) Install Guide for full installation

#### &#x20;

&#x20;

#### CST-Series (Traffic Grade)

The Traffic-Grade Compression Seal (CST) is composed of a high density, open micro-cell polyurethane foam impregnated with a hydrophobic polymer sealing compound. It has been developed to meet the high-performance needs of state and federal DOT projects.

The CST seals have constant internal forces built into each cell. These cells continuously push against each other and the sidewalls of an opening to provide a permanent, watertight seal eliminating costly water damage, as well as allowing for a greater degree of joint movement. The seal incorporates a factory-applied traffic-grade silicone coating on one side of the foam seal.

The CST system provides a waterproof, dustproof, airtight, UV stable, chemically resistant, soundproof, and insulated urethane primary seal. Once the CST is installed in the joint, the material expands depending on temperature, adapting to the width of the joint and the irregularities of the substrate provided such profile changes are not sudden or extreme.

Recommended for use in applications in the horizontal position, where there needs to be resistance to typical roadway traffic or chemicals found on roadways, bridges, garages, plaza decks and other areas that may be a concern.

**Features and Benefits**

•         Can accommodate rapid rates of joint movement.

•         Supplied in pre-compressed state for ease of installation.

•         Excellent compression recovery.

•         Permanently conforms to varying joint contours.

•         Allows for up to 100% (+/- 50% movement from mean joint size.

•         Consistent depth of product.

•         Not based on asphaltic or bitumastic impregnation.

•         Resilient and flexible to –40°F (long-term).

•         Standard Color: Gray.

•         Sizes: Available in 1/4” increments.

•         LEED Credits: Up to two (2) LEED credits depending on the location of the project.

<h3 align="center">Physical Properties of Custodian Compression Seal </h3>

| Properties                  | Result                                                                                                                               |
| --------------------------- | ------------------------------------------------------------------------------------------------------------------------------------ |
| Thermal Conductivity        | 0.05 W/m. °C                                                                                                                         |
| Thermal Resistance          | ASTM C518 3.3 hr-F°-ft![](https://content.gitbook.com/content/JIw8FUsRU2wYcEPoyRbt/blobs/I965KPwGpUmM1urfpgSM/media/image30.png)/Btu |
| Temperature Stability Range | -40° F to 185°F                                                                                                                      |
| Tensile Strength            | ASTM 3574, meets 21 psi min.                                                                                                         |
| Ultimate Elongation         | ASTM 3574, 125% +/- 20%                                                                                                              |
| Compression Set             | ASTM 3574, Max. 2.5%                                                                                                                 |
| Shear Strength              | Min. 8N/cm                                                                                                                           |
| Mildew Resistant            | Excellent                                                                                                                            |
| UV Resistant                | Excellent                                                                                                                            |

<figure><img src="https://4166469688-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJIw8FUsRU2wYcEPoyRbt%2Fuploads%2F89Mi6obA0MhjPGpFNH0C%2FScreenshot%202026-06-23%20at%2010.43.22.jpg?alt=media&amp;token=276d730e-5610-444f-a000-8af81599253f" alt=""><figcaption></figcaption></figure>

**How to Apply**

•         Please refer to [CST-Series (Traffic Grade) Install Guide](#cst-series-traffic-grade) for full installation

#### &#x20;

&#x20;

#### ALHCP & ALHCPW (Horizontal)

(coming soon)

**How to Apply**

•         Please refer to [ALHCP \&ALHCPW (Horizontal)](#alhcp-and-alhcpw-horizontal) Install Guide for full installation

#### &#x20;

&#x20;

#### ALCP-Series

(coming soon)

**How to Apply**

•         Please refer to [ALCP-Series Install Guide](#alcp-series) for full installation
